4030A/4030B Domes Resin of polyurethane resins

　

Ⅰcharacteristics

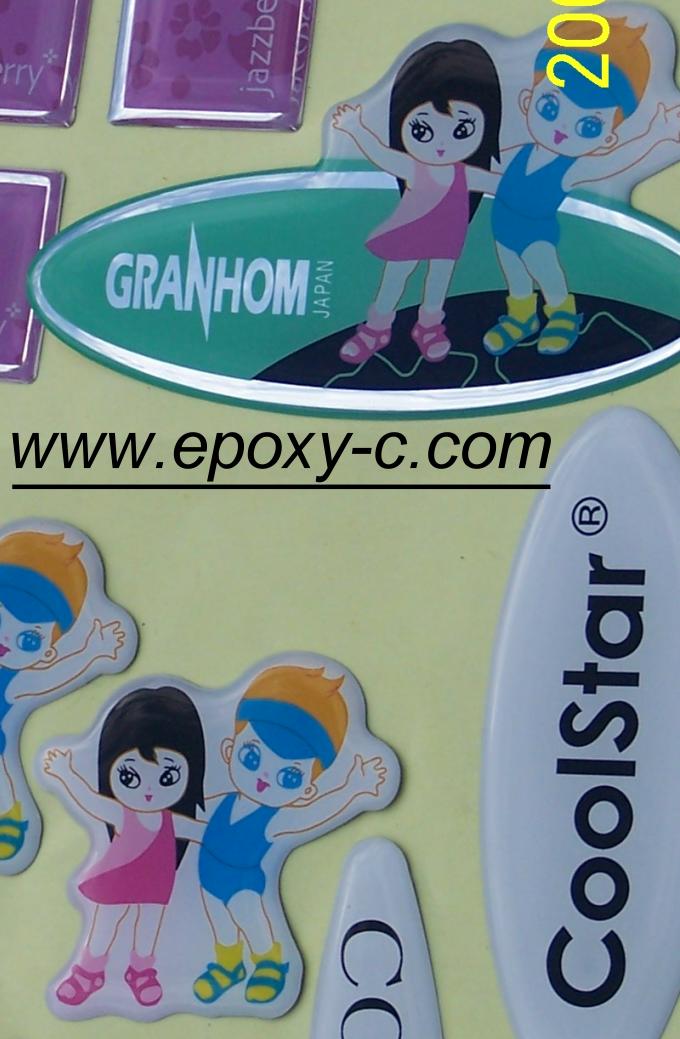

Our domes resin 4030A/4030B is a two-component, room temperature curing product. It doesn’t contain solvents or any other volatile materials. It produces a clear, attractive and protective coating. The thickness is about 1.5~2 mm with three-dimensional effect. Our products can be widely used in producing various kinds of label, nameplates as well as decorations. What’s more, because of its excellent resistance to weathering and ultraviolet light, our resin satisfies the strict requirements of auto industry. The outdoor use resin is guaranteed against yellowing when exposed to sunlight for a period of three years at least.

Ⅱcomponents

4030A is polyisocyanate, 4030B is polyalcohol, no matter using by machine or by hand, the products can meets customer’s requests of different hardness, curing time and viscosity.

Ⅲ before curing

Item

Condition

4030A

4030B

Appearance

Observe

Colorless transparent liquid

Colorless transparent or light yellow liquid

Viscosity

25℃ mpa·s

900±200

300±100

Density

25℃ g/cm3

1.13±0.05

1.05±0.05

Storage

25℃， sealed

6 months

6 months


　

Ⅳ working process

Here the techinics can be divides into two kinds: manual process andmachine process, the former one cures longer than the later one.

1、manual process

a、    Keep 4030A/B in the room with the temperature of 15~25℃ and the humidity < 70% for 24 hours before use. 4030A may rime in low temperature, please warm up to 30~40 ℃ till it turns to clear liquid

b、Put label on the worktable and fix with adhesive tape.

c、Clean the dust and dirt on the label

d、Weigh 4030A/B correctly, the weight ratio is 100: 55. Stir them adequately.

e、Vacuum the mixture to de-bubble

f、Inject on the surface of label

g、make the liquid all around the surface with needle, and break the bubble

h、Put the label in the clean room of 15-25℃ and humidity <70% for 24 hours

 2、machine process

   ⑴ Keep 4030A/B in the room with the temperature of 15~25℃ and the humidity < 70% for 96 hours before use to eliminate bubbles

   ⑵ Put the pump respectively into 4030A and 4030B, sealed and fixed, leave them still.

 ⑶ Put label on the worktable and fixed with adhesive tape.

 ⑷ Clean the dust and dirt on the label

   ⑸ wash blender, pipe and injecting pinhead with dichloromethane

   ⑹ inject 4030A/B into the machine in advance to eliminate bubbles from blender, pipe and injecting pinhead

   ⑺ inject on the surface of label

 ⑻ make the liquid all around the surface with needle, and break the bubble

 ⑼ Put the label in the clean room of 15-25℃ and humidity <70% for 24 hours

Ⅴ ration

    4030A/B=100：55±3 by weight

Ⅵ after curing

Item

Condition

4030A：4030B

Appearance

Observe

Colorless, clean and slick

Hardness

Shore-A

80±10

 Tensile strength

MPa

>20

Elongation at break

%

>200

Ⅶ Package

Packaged in metal drum of 20KG, 50KG or 200KG

Ⅷ cautions

1.        Not belong to dangerous goods, can be delivered as common ones

2.        Store it at the cool and dark place(15-25℃  humidity<70%)

Weigh up 4030A/B correctly and stir them adequately. Pot life may shorten if the amount is more than 100g.

Note: the data above3 are typical tested at relative humidity of 70% and a temperature of 25℃. They are just for reference. We cannot guarantee all the listed data will be reached under specific test conditions. When applying the product, the customers should use data obtained through their own testing.

　
